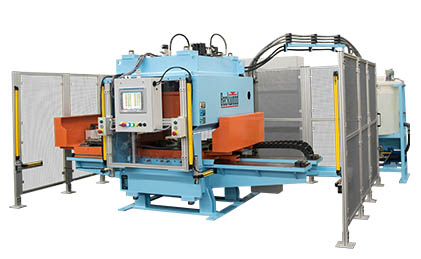

| Tonnage | 20 | ||
| Application | General Forming, Pressure Brazing | ||
| Industry | Appliance | ||
| Frame Style | 4-Post | ||
| Special Features | • Dual station bed shuttle • Active Leveling Control | ||
| Intended Use | Used for a pressure brazing application in the appliance industry |
Custom Features:
- (4) chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity
- Equipped with four-axis Active Leveling Control (ALC) for precision bed to ram parallelism, programmable in 0.001” increments
- Multiple zones of tool temperature control for ultimate uniformity
- Automatic ram slide lubrication system with reservoir
- 33” x 80” Dual station bed shuttle facilitates loading and unloading from both the left and right sides
- Quick Die Change Clamp System with bed rollers and ledge clamps
- Light curtains guarding the front opening of the press; bolt on expanded metal guarding on the sides and rear of the press;
- Floor mounted perimeter guard on the sides; hinged access door with safety interlock provided on the left
- Skid mounted power system and reservoir
- Kidney loop filter/cooler circuit with thermostatically-controlled water-oil heat exchanger upsized for a high-temperature environment
- Calculated Ram Speeds: Approach 0-60 IPM; Pressing 0-60 IPM; Return 120 IPM
