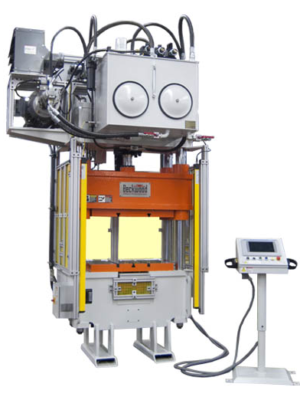

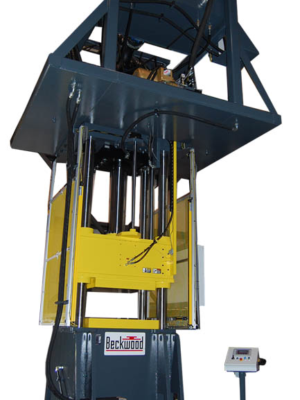

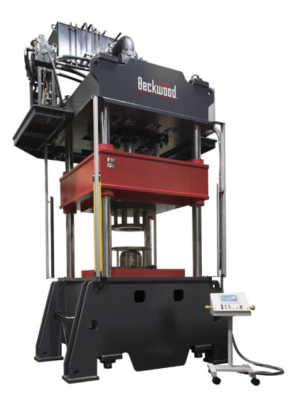

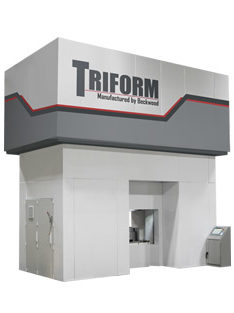

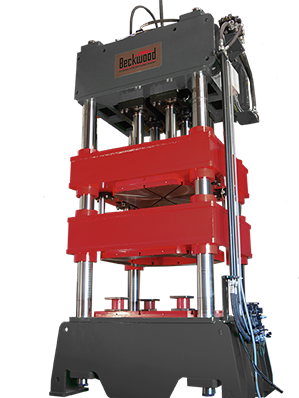

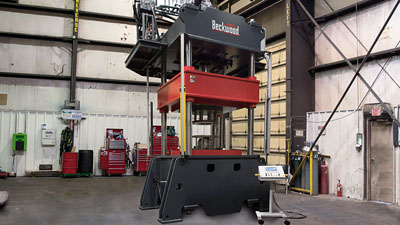

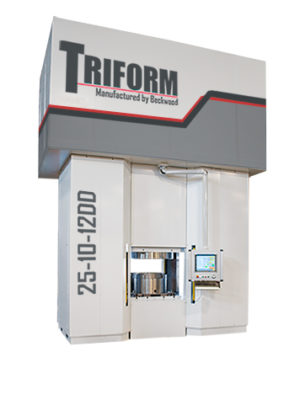

Deep drawing presses, especially in the Aerospace and Medical industries, require unparalleled accuracy and precision. That is why, for nearly 50 years, manufacturers have relied on Beckwood’s customizable multi-action deep draw presses and Triform™ sheet hydroforming presses for complex draw work. Bed size, tonnage, stroke, speed, and more can be tailored to your specific draw forming application. Additionally, Beckwood’s dynamic cushion control allows for tonnage adjustments throughout the entire deep draw process, giving the operator complete control over material flow to eliminate wrinkling and tearing.

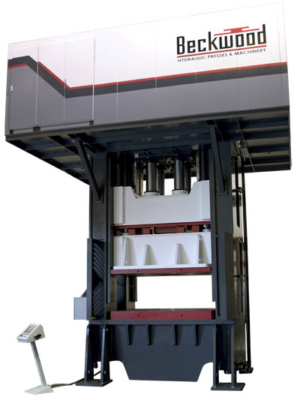

Triple-action presses are another great option to manufacture large sheet metal parts. Typical triple-action deep drawing presses consist of a punch or forming tool on the main draw ram, a clamp ram in the middle, and a knockout cylinder and/or bed cushion on the bottom. The clamp ram, which offers individual tonnage control on each cylinder, is engaged throughout the forming process to control material flow and reduce wrinkling and tearing. With this configuration, the lower ram can serve either as a knockout for part ejection or as a cushion, depending on tooling requirements.
Beckwood offers a range of deep drawing press features to improve the overall process including:
- Dynamically controlled bed cushions
- Programmable ram speed
- Ram and bed knockout / ejection options
- Tool Change Systems
- Recipe functionality
- Triform’s Proprietary “In-Sight” feature for part development
- Data Acquisition
- PressLink Module for remote support
- Pre-preventive Maintenance / OEE Systems
- PAM-STAMP 3D Forming Simulation Software
Learn how Meggitt Safety Systems uses a deep drawing press to “extinguish” waste
