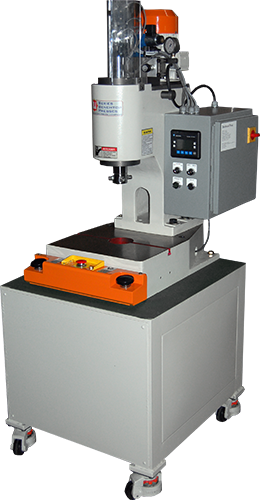

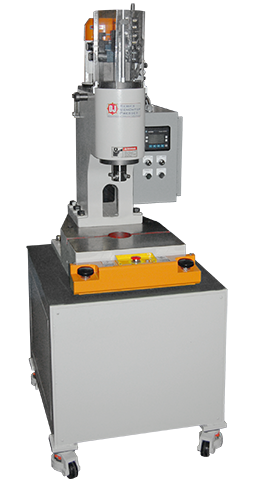

The DHC models of benchtop presses offer 3-5 tons of pressing force, optimal for light-duty assembly. As a result of these lower tonnages the frames are made of more affordable cast iron, but these machines are just as durable and reliable as any benchtop press offered by Beckwood.
The DHC line is standard but can be customized with the options listed below.
PRODUCT SPECIFICATIONS
Model:
DHC-3
DHC-5
Tonnage:
3.3
5.5
Stroke:
5.9"
5.9"
Open Height:
9.8"
9.8"
Approach Speed:
368 IPM
315 IPM
Pressing Speed:
153 IPM
97 IPM
Retract Speed:
2630 IPM
140 IPM
Bed Table:
17.7"W x 14.2"D
17.7"W x 14.2"D
Motor Speed:
2HP
2HP
Weight:
775lbs
795lbs
Throat Distance:
6.3"
6.3"
Frame Construction:
Cast Iron
Cast Iron
Standard Features
- Adjustable limit switches
- Variable pressing speeds
- Mechanical bottom stop adjustment
- Quiet operation
- Fast speeds
- 1 year limited warranty
- Backed by Beckwood’s industry-leading Service & Support team
Options
- Complete Automation & Integration Solutions
- Light Curtains & Safety Guarding
- Machining Requirements
- Work Table with Casters
- Multiple Control Platforms
- 460V/3PH Power System
- Adjustable Stroke & Shut Height
- Pressure Switch
- Air/Water Cooler
- Reservoir Heater
