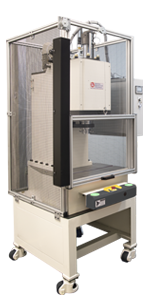

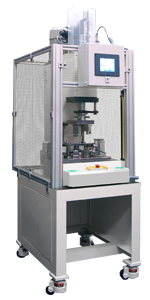

The DHS line of cost-efficient benchtop presses feature durable steel frames and are backed by Beckwood’s industry-leading service team. With models ranging from 11-22 tons, you’re sure to find one that fits your light-duty assembly, punching, and/or forming application. Like the rest of the DJ Series, these presses come standard but can be configured to meet your needs.
PRODUCT SPECIFICATIONS
Model:
DHS-10
DHS-15
DHS-20
Tonnage:
11
16.5
22
Approach Speed:
500 IPM
500 IPM
437 IPM
Pressing Speed:
63 IPM
47 IPM
44 IPM
Retract Speed:
290 IPM
259 IPM
259 IPM
Bed Table:
23.6"W x 14.2"D
23.6"W x 14.2"D
27.6"W x 15.7"D
Motor Speed:
3HP
3HP
5HP
Weight:
2,094lbs
2,755lbs
3,527lbs
Throat Distance:
7.1"
8.1"
8.7"
Frame Construction:
Steel
Steel
Steel
Standard Features
- Adjustable limit switches
- Variable pressing speeds
- Mechanical bottom stop adjustment
- Quiet operation
- Fast speeds
- 1 year limited warranty
- Backed by Beckwood’s industry-leading Service & Support team
Options
- Complete Automation & Integration Solutions
- Light Curtains & Safety Guarding
- Machining Requirements
- Work Table with Casters
- Multiple Control Platforms
- 460V/3PH Power System
- Adjustable Stroke & Shut Height
- Pressure Switch
- Air/Water Cooler
- Reservoir Heater
