| Tonnage | 500 | ||
| Application | Triple-Action Forming, Deep Drawing | ||
| Industry | Safety, Aerospace | ||
| Frame Style | 4-Post | ||
| Special Features | • Programmable Bed Cushion • Knockout Cylinder • Variable Frequency Drive • Fluid Health Monitoring • SITEMA Ram Safety Catching System | ||

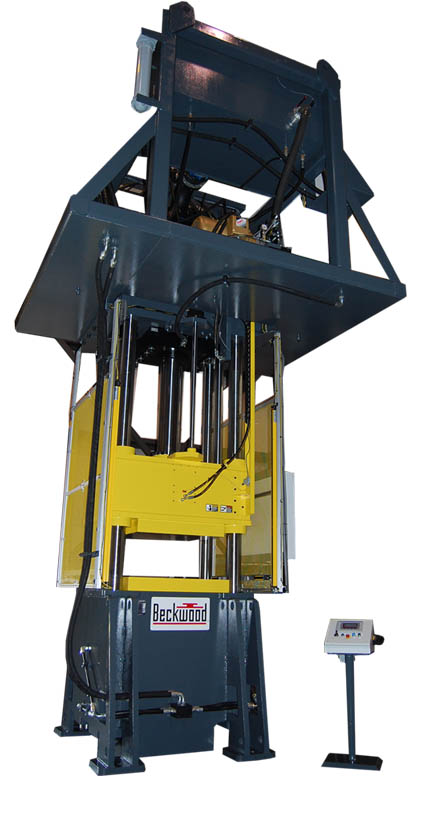

| Intended Use | Used to deep draw fire extinguisher components for use in aircraft by a leading safety systems supplier |
Custom Features:
- (4) 6” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity
- Parker SSD Variable Frequency Drive for increased energy efficiency and control
- Proportionally controlled bed cushion allows for dynamic cushion control through four travel zones
- On-board fluid health monitoring system with early warning indicators
- Ram knockout cylinder
- Calculated Ram Speeds: Approach: 15-45 IPM; Return: 170-492 IPM
- Light curtain guards the front & rear openings; bolt-on expanded metal guards cover side openings
- SITEMA Ram Safety Catching System (RSCS) provides redundant load holding capability of the ram at any position throughout the stroke
- Jokab safety PLC to monitor performance of included safety monitored valves and RSCS
