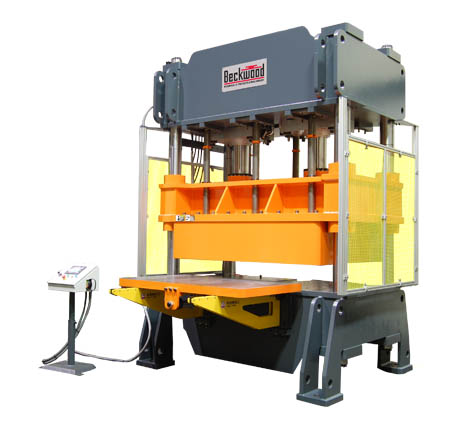

| Tonnage | 400 | ||
| Application | Rubber Pad Forming | ||
| Industry | Aerospace | ||
| Frame Style | 4-Post | ||
| Special Features | • Fully encapsulated rubber pad box • Bed shuttle | ||
| Intended Use | Used to form miscellaneous sheet metal parts for the aerospace industry |
Custom Features:
- Fully encapsulated rubber pad box traps the rubber during forming, preventing it from extruding outside of the work area
- 15” thick urethane pad allows forming up to a 5”-tall form block
- (4) 6” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity
- Bolt on expanded metal guards with safety interlocks cover the side openings
- Skid mounted power system and reservoir
- Kidney loop filter/cooler circuit with thermostatically-controlled water-oil heat exchanger
- Ram Speeds: Approach: 60 IPM, Pressing: 20 IPM, Return: 29 IPM
- 38” x 60” Bed shuttle for loading and unloading through the front opening of the press
