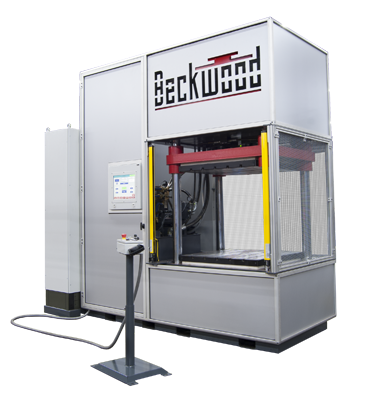

| Tonnage | 100 | ||
| Application | Compression Molding; Composite Forming | ||
| Industry | R&D | ||
| Frame Style | 4-Post | ||
| Special Features | • Multi-zone heated platens • Dwell capability | ||
| Intended Use | Used in an R&D setting to form composite materials for automotive and aerospace component lightweighting |
Custom Features:
- (4) 4” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity
- (2) 36” x 36” heated platens with multiple zones of temperature control for ultimate uniformity
- Gun drilled channels provided in the platens create a serpentine flow for rapid cooling
- Platen temperature control accuracy of ±5°F across the surface of the platen
- Light curtains guarding the front opening of the press; bolt on expanded metal guarding on the sides and rear
- Position control of ±0.002” and pressure control of ±2%
- Data acquisition system capable of recording and storing time, temperature, pressure and position
- Ram Speeds: Fast Approach: 153IPM, Pressing: 0-39 IPM, Return: 159 IPM
- Controls provide inch mode, semi-automatic mode or fully automatic mode
