The servo-electric presses shown below are fully configurable. Bed size, ram size, frame style, dwell time, power requirements, and more can be tailored to your exact needs.

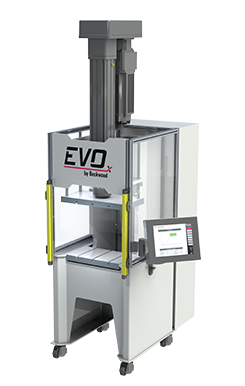

C-Frame Configuration (Model C2-20)
Force
20,000lbf (10T)
Ram/Bed Size*
12" x 20"
Daylight
24"
Stroke
12" or 24"
Throat Distance
7"
*Model also available without ram
4-Post Configuration (Model P2-20)
Force
20,000lbf (10T)
Ram/Bed Size
18" x 24"
Daylight
24”
Stroke
12" or 24"
Universal Specs
Actuator Type
Roller Screw
Interface
15" touchscreen PC
Standard Features
- Positional repeatability within +/-0.0005”
- Force & positional feedback
- Data acquisition measuring torque, force, position, and time at a maximum rate of 1 sample / ms
- Programmable dwell time
- Roller-screw actuator design for longer life
- Light curtains and polycarbonate safety guarding
- Backed by Beckwood’s industry-leading Service & Support team
Options
- C-frame or 4-post frame style
- Customizable worktables for added storage
- Extended (infinite) dwell
- Heated platens
- 230v or 460v power configurations
- Bar code scanner – Part traceability with serialization
